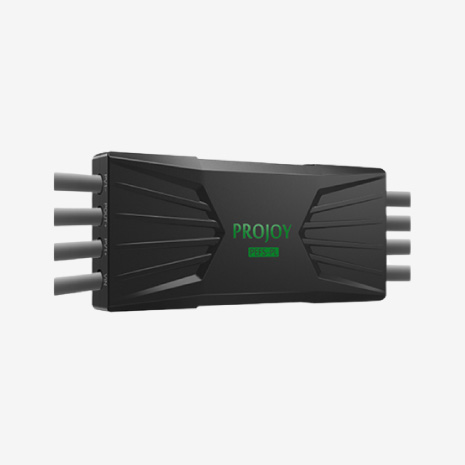

PEFS-PL Series Panel Level Rapid Shutdown
DC 24V, One fits Two, 80V
● Built-in temperature sensor, automatically shutdown while over 85°C (185°F)
● 24V DC Control
● Single rapid shutdown connects to 2 PV modules
● Match with ALL brand of the inverter
● Meet to NEC 2017/2020, UL1741, UL3741 regulations
● Match with ALL brand of the inverter
● Protection Level: IP68
● Slim size, match module perfectly
● Control up to 480 pcs of modules under controller
● Comply with NEC2017 / NEC2020(690.12)
● Lockable option, avoiding mis-action
● UL 1741 PVRSE compliance / UL 3741 PVRSS compliance
● Protection IP65
● Max 50°C, No power degradation
● 1 to 5 strings
● Up to 50A
● Up to 1500Vdc
● CE certification
● Motor driven switch disconnection
● PC+ABS ,Robust plastic enclosure IP66
● Knock outs | Cable glands | MC4 connectors
● Built-in DC isolator with TUV, CE, CB, SAA, UL
● Shut down automatically exceeding 70℃
● Equipped with breathing valve to avoid conden-sation inside the enclosure
● Applied to residential solar installations
● 6 to 10 strings
● Up to 50A
● Up to 1500V DC
● CE certification
● Motor driven switch disconnection
● Sheet metal material enclosure IP65
● Built-in DC isolator with TUV, CE, CB, SAA, UL
● Shut down automatically exceeding 70℃
● Equipped with breathing valve to avoid conden-sation inside the enclosure
● Applied to residential and commercial solar installations
